Turnbuckle Jaw and Swage Stud, Closed Body
Turnbuckle Jaw and Swage Stud, Closed Body

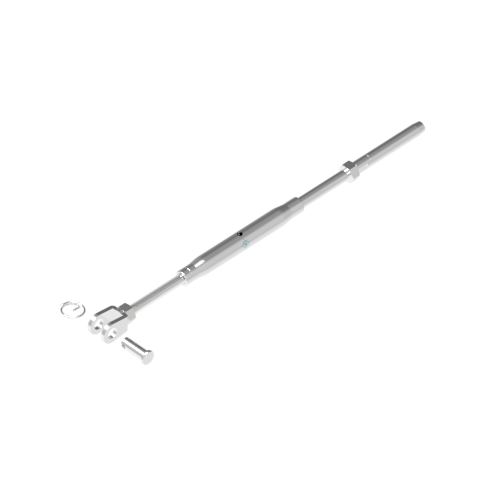

The Stainless Turnbuckle Jaw & Swage Stud fits wire rope sizes from 1/8″ to 1/2″. It features a jaw on one end, a swage stud on the other, and a closed-body style with UNF threads. Made from 316 stainless steel, it resists corrosion and handles harsh conditions. Perfect for marine and architectural setups that demand strength and a clean finish.
| ITEM | A (size) | B (wire) | C | D | E | F | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| S0781-0703 | 1/4″ | 1/8″ | 4.20″ | 7.50″ | 0.38″ | 0.22″ | 0.19 | $23.05 |
|
|
| S0781-0704 | 1/4″ | 5/32″ | 4.20″ | 7.75″ | 0.38″ | 0.22″ | 0.21 | $24.17 |
|
|
| S0781-0705 | 1/4″ | 3/16″ | 4.25″ | 8.25″ | 0.38″ | 0.22″ | 0.23 | $25.13 |
|
|
| S0781-0904 | 5/16″ | 5/32″ | 4.32″ | 8.19″ | 0.40″ | 0.30″ | 0.35 | $24.75 |
|
|
| S0781-0905 | 5/16″ | 3/16″ | 4.32″ | 8.56″ | 0.40″ | 0.30″ | 0.37 | $29.05 |
|
|
| S0781-1005 | 3/8″ | 3/16″ | 4.90″ | 9.25″ | 0.46″ | 0.37″ | 0.53 | $37.12 |
|
|
| S0781-1007 | 3/8″ | 1/4″ | 4.90″ | 10.00″ | 0.46″ | 0.37″ | 0.60 | $43.10 |
|
|
| S0781-1307 | 1/2″ | 1/4″ | 5.87″ | 11.87″ | 0.59″ | 0.46″ | 1.09 | $64.71 |
|
|
| S0781-1309 | 1/2″ | 5/16″ | 5.87″ | 12.62″ | 0.59″ | 0.46″ | 1.21 | $85.09 |
|
|
| S0781-1610 | 5/8″ | 3/8″ | 7.48″ | 15.00″ | 0.70″ | 0.55″ | 2.50 | $182.39 |
|
|
| S0781-2013 | 3/4″ | 1/2″ | 8.66″ | 17.40″ | 0.94″ | 0.75″ | 4.20 | $288.95 |
|
