Turnbuckle Jaw UNF
Turnbuckle Jaw UNF
The Stainless Turnbuckle Jaw features right- and left-hand UNF threads. It supports working load limits up to 2,800 lbs. Sizes range from 3/16″ to 5/8″ to fit a variety of needs. These jaws are compatible with the closed Turnbuckle Body (P0780-BD series). 316 stainless steel delivers strength and corrosion resistance for marine and industrial use.

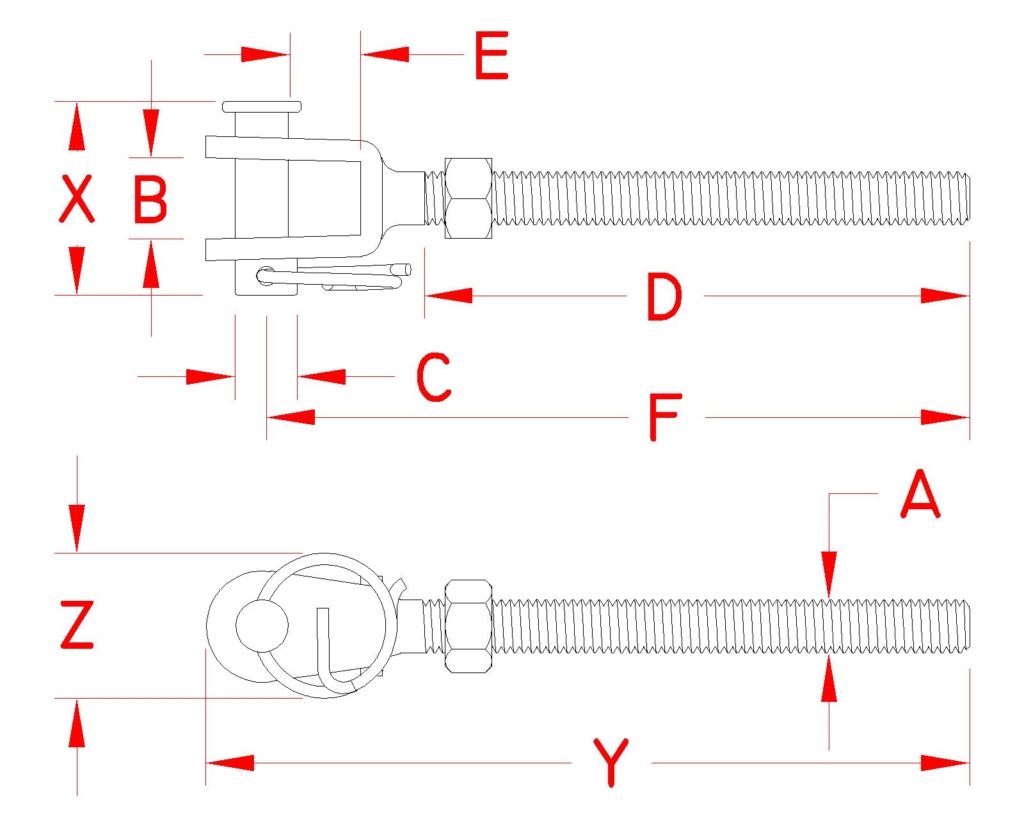

| ITEM | A (size) | B | C | D | E | F | X | Y | Z | WLL (lb) | WT (lb) | Thread Type | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P0780-RJ07 | 1/4″ | 0.38″ | 0.23″ | 2.40″ | 0.40″ | 3.19″ | 0.83″ | 3.43″ | 0.55″ | 440 | 0.07 | RH UNF | $8.90 |
|
|
| P0780-RJ09 | 5/16″ | 0.42″ | 0.31″ | 2.50″ | 0.38″ | 3.35″ | 0.90″ | 3.60″ | 0.63″ | 800 | 0.11 | RH UNF | $15.56 |
|
|
| P0780-RJ10 | 3/8″ | 0.47″ | 0.37″ | 2.61″ | 0.51″ | 3.70″ | 1.13″ | 4.11″ | 0.79″ | 1,200 | 0.19 | RH UNF | $19.90 |
|
|
| P0780-RJ13 | 1/2″ | 0.61″ | 0.47″ | 3.16″ | 0.74″ | 4.71″ | 1.29″ | 5.18″ | 0.98″ | 2,200 | 0.39 | RH UNF | $31.12 |
|
|
| P0780-RJ16 | 5/8″ | 0.68″ | 0.62″ | 3.92″ | 1.00″ | 6.02″ | 1.65″ | 6.70″ | 1.34″ | 2,800 | 0.86 | RH UNF | $129.60 |
|
|
| P0780-LJ07 | 1/4″ | 0.38″ | 0.23″ | 2.40″ | 0.40″ | 3.19″ | 0.83″ | 3.43″ | 0.55″ | 440 | 0.07 | LH UNF | $8.90 |
|
|
| P0780-LJ09 | 5/16″ | 0.42″ | 0.31″ | 2.50″ | 0.38″ | 3.35″ | 0.90″ | 3.60″ | 0.63″ | 800 | 0.11 | LH UNF | $15.56 |
|
|
| P0780-LJ10 | 3/8″ | 0.47″ | 0.37″ | 2.61″ | 0.51″ | 3.70″ | 1.13″ | 4.11″ | 0.79″ | 1,200 | 0.19 | LH UNF | $21.25 |
|
|
| P0780-LJ13 | 1/2″ | 0.61″ | 0.47″ | 3.16″ | 0.74″ | 4.71″ | 1.29″ | 5.18″ | 0.98″ | 2,200 | 0.39 | LH UNF | $33.44 |
|
|
| P0780-LJ16 | 5/8″ | 0.68″ | 0.62″ | 3.92″ | 1.00″ | 6.02″ | 1.65″ | 6.70″ | 1.34″ | 2,800 | 0.86 | LH UNF | $121.56 |
|
