Turnbuckle Stud – Threaded
Turnbuckle Stud – Threaded
The Stainless Forged Turnbuckle Studs feature right- and left-hand UNC threads. They support working load limits up to 8,000 lbs. These studs are available in sizes from 1/4″ to 1″ and are compatible with the forged open Turnbuckle Body (S0106-BD series). Made from 316 stainless steel, they provide reliable strength and corrosion resistance for marine and industrial use.

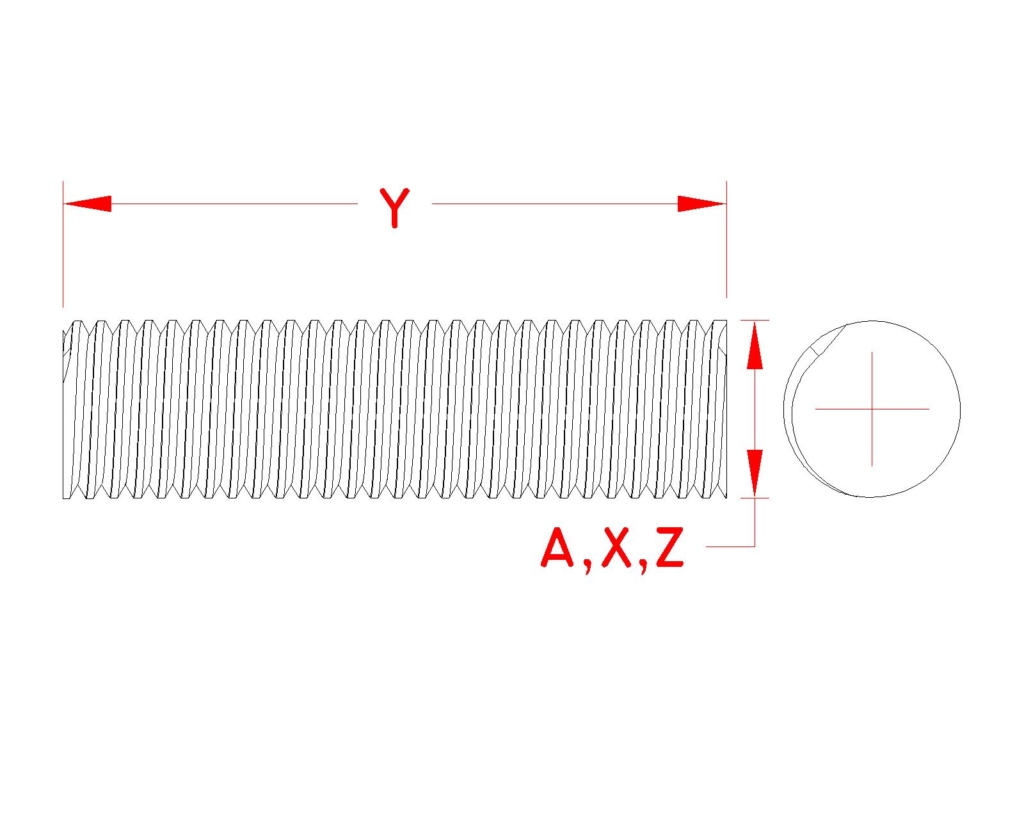

| ITEM | A (size) | X | Y | Z | WLL (lb) | WT (lb) | Thread Direction | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| P0106-RT07 | 1/4″ | 0.25″ | 4.50″ | 0.25″ | 500 | 0.05 | RH UNC | $9.59 |
|
|
| P0106-RT08 | 5/16″ | 0.28″ | 5.25″ | 0.28″ | 800 | 0.09 | RH UNC | $18.68 |
|
|
| P0106-RT10 | 3/8″ | 0.38″ | 6.50″ | 0.38″ | 1,200 | 0.16 | RH UNC | $30.64 |
|
|
| P0106-RT13 | 1/2″ | 0.50″ | 7.00″ | 0.50″ | 2,200 | 0.31 | RH UNC | $35.54 |
|
|
| P0106-RT16 | 5/8″ | 0.62″ | 7.50″ | 0.62″ | 3,500 | 0.53 | RH UNC | $51.72 |
|
|
| P0106-RT20 | 3/4″ | 0.75″ | 8.00″ | 0.75″ | 5,200 | 0.83 | RH UNC | $58.91 |
|
|
| P0106-RT25 | 1″ | 1.00″ | 9.00″ | 1.00″ | 8,000 | 1.69 | RH UNC | $93.39 |
|
|
| P0106-LT07 | 1/4″ | 0.25″ | 4.50″ | 0.25″ | 500 | 0.05 | LH UNC | $9.59 |
|
|
| P0106-LT08 | 5/16″ | 0.28″ | 5.25″ | 0.28″ | 800 | 0.09 | LH UNC | $13.82 |
|
|
| P0106-LT10 | 3/8″ | 0.38″ | 6.50″ | 0.38″ | 1,200 | 0.16 | LH UNC | $30.64 |
|
|
| P0106-LT13 | 1/2″ | 0.50″ | 7.00″ | 0.50″ | 2,200 | 0.31 | LH UNC | $35.54 |
|
|
| P0106-LT16 | 5/8″ | 0.62″ | 7.50″ | 0.62″ | 3,500 | 0.53 | LH UNC | $55.76 |
|
|
| P0106-LT20 | 3/4″ | 0.75″ | 8.00″ | 0.75″ | 5,200 | 0.83 | LH UNC | $58.91 |
|
|
| P0106-LT25 | 1″ | 1.00″ | 9.00″ | 1.00″ | 8,000 | 1.69 | LH UNC | $88.33 |
|
