Turnbuckle Toggle
Turnbuckle Toggle
The Stainless Turnbuckle Toggle uses 316 stainless steel for strength and corrosion resistance. It features right- and left-hand UNF threads for smooth adjustability. Choose from sizes ranging from 3/16″ to 5/8″. This toggle fits the closed-body turnbuckle (P0780-BD series). Use it in marine and industrial projects that need reliable performance.

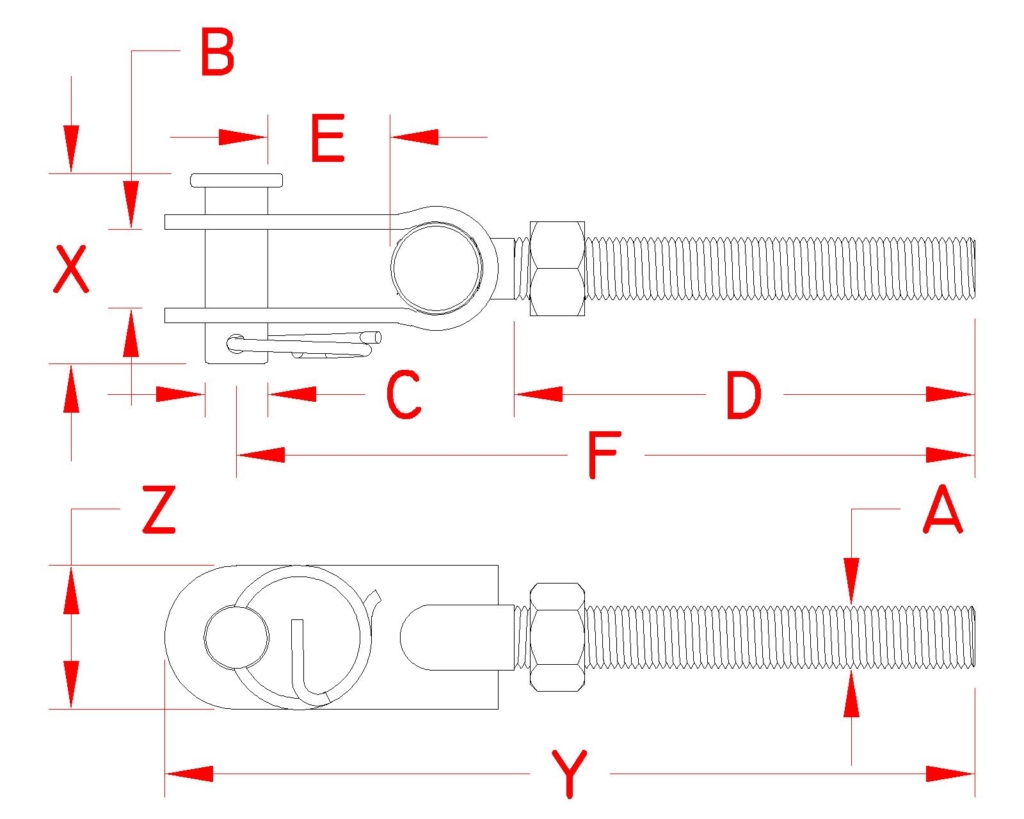

| ITEM | A (size) | B | C | D | E | F | X | Y | Z | WLL (lb) | WT (lb) | Thread Type | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P0780-RT05 | 3/16″ | 0.25″ | 0.19″ | 1.90″ | 0.58″ | 3.00″ | 0.74″ | 3.25″ | 0.51″ | 240 | 0.05 | RH UNF | $10.86 |
|
|
| P0780-RT07 | 1/4″ | 0.37″ | 0.23″ | 2.38″ | 0.45″ | 3.41″ | 0.82″ | 3.70″ | 0.59″ | 550 | 0.09 | RH UNF | $17.28 |
|
|
| P0780-RT09 | 5/16″ | 0.39″ | 0.31″ | 2.45″ | 0.61″ | 3.95″ | 0.90″ | 4.35″ | 0.80″ | 860 | 0.18 | RH UNF | $17.92 |
|
|
| P0780-RT10 | 3/8″ | 0.52″ | 0.37″ | 2.63″ | 0.75″ | 4.35″ | 1.12″ | 4.86″ | 0.87″ | 1,700 | 0.26 | RH UNF | $21.63 |
|
|
| P0780-RT13 | 1/2″ | 0.59″ | 0.47″ | 3.20″ | 0.62″ | 5.60″ | 1.30″ | 5.92″ | 1.20″ | 2,060 | 0.53 | RH UNF | $28.83 |
|
|
| P0780-RT16 | 5/8″ | 0.79″ | 0.62″ | 4.13″ | 0.83″ | 6.65″ | 1.68″ | 7.37″ | 1.42″ | 2,800 | 1.21 | RH UNF | $151.21 |
|
|
| P0780-LT05 | 3/16″ | 0.25″ | 0.19″ | 1.90″ | 0.58″ | 3.00″ | 0.74″ | 3.25″ | 0.51″ | 240 | 0.05 | LH UNF | $10.86 |
|
|
| P0780-LT07 | 1/4″ | 0.37″ | 0.23″ | 2.38″ | 0.45″ | 3.41″ | 0.82″ | 3.70″ | 0.59″ | 550 | 0.09 | LH UNF | $17.28 |
|
|
| P0780-LT09 | 5/16″ | 0.39″ | 0.31″ | 2.45″ | 0.61″ | 3.95″ | 0.90″ | 4.35″ | 0.80″ | 860 | 0.18 | LH UNF | $17.92 |
|
|
| P0780-LT10 | 3/8″ | 0.52″ | 0.37″ | 2.63″ | 0.75″ | 4.35″ | 1.12″ | 4.86″ | 0.87″ | 1,700 | 0.26 | LH UNF | $21.63 |
|
|
| P0780-LT13 | 1/2″ | 0.59″ | 0.47″ | 3.20″ | 0.62″ | 5.60″ | 1.30″ | 5.92″ | 1.20″ | 2,060 | 0.53 | LH UNF | $28.83 |
|
|
| P0780-LT16 | 5/8″ | 0.79″ | 0.62″ | 4.13″ | 0.83″ | 6.65″ | 1.68″ | 7.37″ | 1.42″ | 2,800 | 1.21 | LH UNF | $151.21 |
|
