Twin Swivel Eye Block – Rope
Twin Swivel Eye Block – Rope

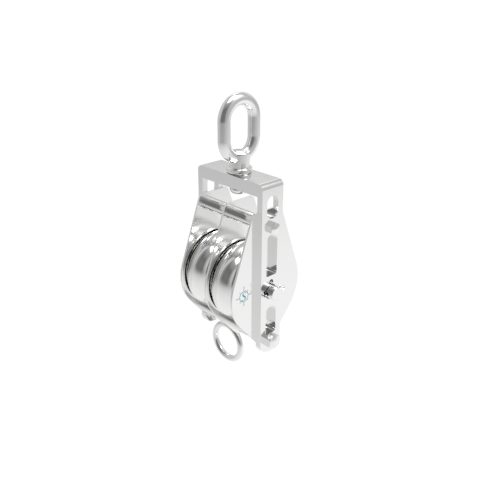

The Stainless Twin Swivel Eye Block fits rope sizes from 1/2″ to 3/4″. Its 304 stainless steel body delivers strength and stability, while the removable sheave is available in either 304 or 316 stainless steel for maximum corrosion resistance. This block is a reliable solution for heavy-duty rigging in marine and industrial environments.
| ITEM | A | B (rope size) | C | D | X | Y | Z | WLL (lb) | WT (lb) | Sheave | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0424-E075 | 3″ | 1/2″ | 0.95″ | 2.27″ | 10.00″ | 3.26″ | 3.30″ | 1,400 | 3.46 | S0400-0075 | $262.52 |
|
|
| S0424-E100 | 4″ | 5/8″ | 0.95″ | 2.89″ | 12.50″ | 4.45″ | 3.50″ | 2,000 | 5.25 | S0400-0100 | $431.01 |
|
|
| S0424-E125 | 5″ | 3/4″ | 1.25″ | 3.96″ | 14.00″ | 5.51″ | 4.08″ | 3,000 | 6.50 | S0400-0125 | $475.88 |
|
