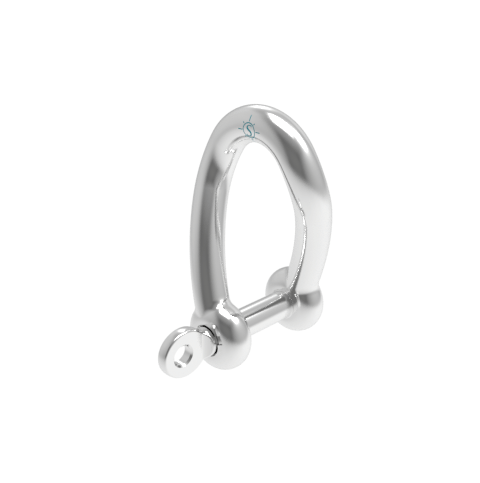

Twist Shackle with Captive Pin
Twist Shackle with Captive Pin
The Stainless Twist Shackle includes a captive pin with a self-locking design that won’t back out or detach. The pin stays connected to the shackle body and won’t fall out when opened, making handling safer and easier. Made from 316 stainless steel, this shackle resists corrosion and delivers long-lasting performance. Available in sizes from 1/4″ to 3/8″, it’s ideal for marine use where dropped hardware is a concern.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0163-CP06 | 1/4" | 0.23" | 0.42" | 1.00" | 0.48" | 1.32" | 1.59" | 0.95" | 750 | 0.05 | $4.52 |
|
|
| S0163-CP08 | 5/16" | 0.31" | 0.63" | 1.30" | 0.66" | 1.73" | 2.07" | 1.26" | 1,000 | 0.13 | $6.59 |
|
|
| S0163-CP10 | 3/8" | 0.38" | 0.71" | 1.80" | 0.75" | 2.19" | 2.66" | 1.51" | 1,200 | 0.27 | $8.90 |
|
