US Round Pin Chain Shackle
US Round Pin Chain Shackle

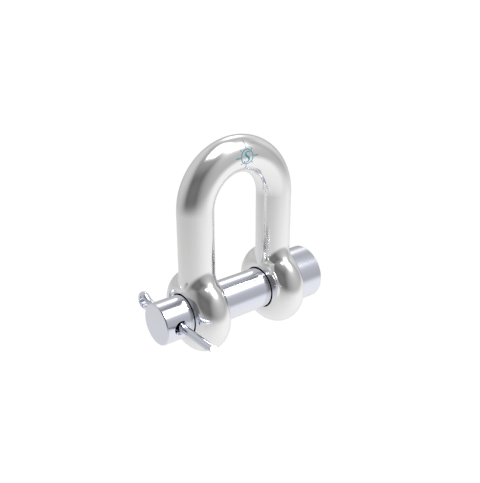

The Stainless US Round Pin Chain Shackle features an oversize round pin for secure, reliable connections. Made from 316-NM stainless steel, it resists corrosion in tough environments. Available in multiple sizes, this shackle is ideal for both industrial and marine applications.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0115-RP07-US | 1/4" | 0.32" | 0.46" | 0.87" | 1.51" | 1.59" | 0.60" | 1,000 | 0.10 | $21.56 |
|
|
| S0115-RP08-US | 5/16" | 0.38" | 0.52" | 1.02" | 1.77" | 1.85" | 0.73" | 1,300 | 0.15 | $22.86 |
|
|
| S0115-RP10-US | 3/8" | 0.44" | 0.65" | 1.24" | 2.01" | 2.24" | 0.88" | 1,500 | 0.27 | $26.49 |
|
|
| S0115-RP12-US | 7/16" | 0.50" | 0.75" | 1.43" | 2.39" | 2.60" | 1.01" | 2,000 | 0.42 | $33.14 |
|
|
| S0115-RP13-US | 1/2" | 0.63" | 0.79" | 1.58" | 2.64" | 2.92" | 1.18" | 3,000 | 0.64 | $34.00 |
|
|
| S0115-RP25-US | 1" | 1.13" | 1.67" | 3.20" | 4.98" | 5.87" | 2.15" | 10,000 | 4.41 | $184.80 |
|
