US Bolt Chain Shackle
US Bolt Chain Shackle

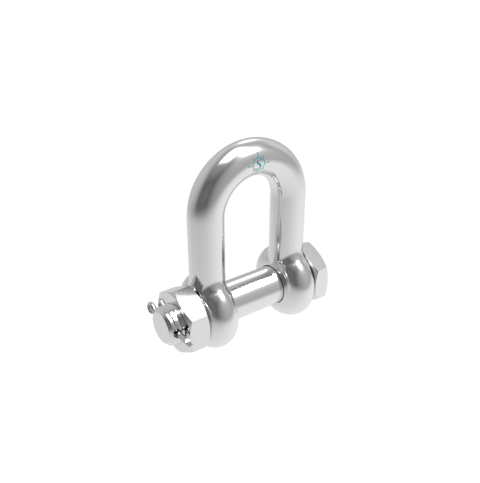

Built for strength and reliability, the US Bolt Chain Shackle features an oversized bolt for maximum security in heavy-duty jobs. Made in the USA from premium 316-NM stainless steel, it resists corrosion in the toughest marine and industrial environments. Each shackle is clearly marked to the nearest fractional ton for fast, safe identification. Choose from multiple sizes to match your rigging, lifting, or anchoring needs.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0115-SA07-US | 1/4" | 0.31" | 0.46" | 0.87" | 1.59" | 1.55" | 0.61" | 1,000 | 0.10 | $32.86 |
|
|
| S0115-SA10-US | 3/8" | 0.44" | 0.65" | 1.24" | 2.28" | 2.24" | 0.90" | 1,500 | 0.30 | $47.11 |
|
|
| S0115-SA20-US | 3/4" | 0.88" | 1.20" | 2.40" | 4.18" | 4.40" | 1.72" | 6,000 | 2.20 | $140.65 |
|
|
| S0115-SA08-US | 5/16" | 0.38" | 0.52" | 1.02" | 1.80" | 1.85" | 0.72" | 1,300 | 0.16 | $36.89 |
|
|
| S0115-SA12-US | 7/16" | 0.50" | 0.75" | 1.43" | 2.62" | 2.62" | 1.00" | 2,000 | 0.43 | $53.63 |
|
|
| S0115-SA13-US | 1/2" | 0.63" | 0.79" | 1.58" | 2.87" | 2.93" | 1.18" | 3,000 | 0.72 | $75.86 |
|
|
| S0115-SA16-US | 5/8" | 0.75" | 1.05" | 1.94" | 3.61" | 3.64" | 1.45" | 4,000 | 1.31 | $124.01 |
|
|
| S0115-SA22-US | 7/8" | 1.01" | 1.45" | 2.88" | 4.84" | 5.25" | 1.94" | 8,000 | 3.41 | $219.39 |
|
|
| S0115-SA25-US | 1" | 1.13" | 1.67" | 3.20" | 5.18" | 5.85" | 2.19" | 10,000 | 4.69 | $292.83 |
|
