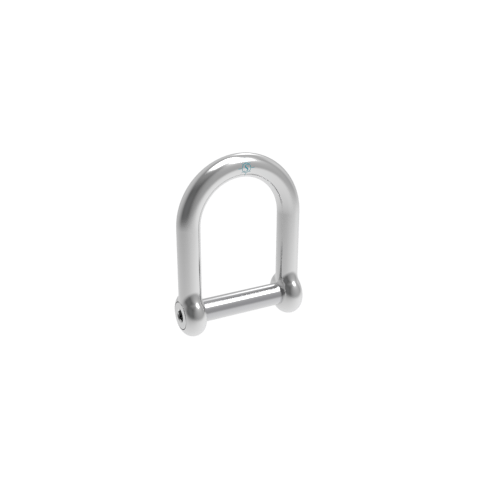

Wide D Shackle with No Snag Pin
Wide D Shackle with No Snag Pin
The Stainless Wide D Shackle features a flush no-snag pin that prevents catching on lines or gear. It’s available in sizes from 1/4″ to 1/2″ for a range of applications. Made from 316 stainless steel, it resists corrosion and holds up in tough marine and industrial environments.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0114-NS06 | 1/4" | 0.24" | 0.92" | 1.31" | 1.45" | 1.89" | 0.49" | 750 | 0.07 | $22.28 |
|
|
| S0114-NS08 | 5/16" | 0.32" | 1.11" | 1.22" | 1.73" | 2.02" | 0.60" | 1,000 | 0.12 | $24.81 |
|
|
| S0114-NS10 | 3/8" | 0.40" | 1.54" | 2.14" | 2.33" | 3.12" | 0.78" | 1,200 | 0.32 | $27.72 |
|
|
| S0114-NS12 | 1/2" | 0.47" | 1.89" | 2.59" | 2.92" | 3.63" | 0.94" | 1,500 | 0.57 | $32.03 |
|
