Wire Rope Clip
Wire Rope Clip

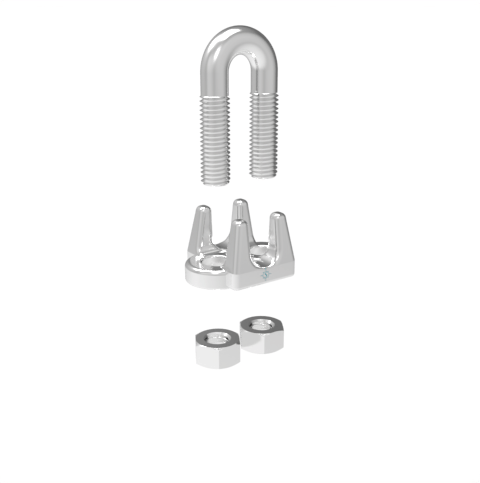

The Stainless Wire Rope Clip is available in sizes from 1/16″ to 1-1/4″ to fit a wide range of rigging setups. Precision cast from 304 stainless steel, it resists corrosion and delivers long-lasting durability in marine and industrial environments. Important: Always install wire rope clips over bare cable. Do not use on PVC-coated cable unless you remove the coating first. Re-tighten or re-torque nuts regularly to ensure a secure hold.
| ITEM | A (size) | B | C | D | X | Y | Z | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0122-FS02 | 1/16″ | 0.09″ | 0.41″ | 0.61″ | 0.54″ | 0.72″ | 0.54″ | 0.02 | $1.34 |
|
|
| S0122-FS03 | 1/8″ | 0.12″ | 0.48″ | 0.68″ | 0.61″ | 0.79″ | 0.62″ | 0.02 | $1.66 |
|
|
| S0122-FS04 | 5/32″ | 0.15″ | 0.56″ | 0.82″ | 0.69″ | 0.95″ | 0.74″ | 0.03 | $1.70 |
|
|
| S0122-FS05 | 3/16″ | 0.19″ | 0.62″ | 0.83″ | 0.77″ | 1.00″ | 0.86″ | 0.05 | $1.77 |
|
|
| S0122-FS07 | 1/4″ | 0.23″ | 0.72″ | 1.10″ | 0.86″ | 1.30″ | 1.02″ | 0.08 | $2.27 |
|
|
| S0122-FS08 | 5/16″ | 0.31″ | 0.84″ | 1.28″ | 1.10″ | 1.58″ | 1.33″ | 0.17 | $3.43 |
|
|
| S0122-FS13 | 1/2″ | 0.47″ | 1.11″ | 2.08″ | 1.58″ | 2.40″ | 1.96″ | 0.05 | $9.96 |
|
|
| S0122-FS10 | 3/8″ | 0.38″ | 0.96″ | 1.65″ | 1.36″ | 2.00″ | 1.76″ | 0.34 | $6.97 |
|
|
| S0122-FS14 | 9/16″ | 0.47″ | 1.27″ | 2.22″ | 1.66″ | 2.68″ | 2.05″ | 0.62 | $14.96 |
|
|
| S0122-FS16 | 5/8″ | 0.54″ | 1.30″ | 2.64″ | 1.82″ | 3.07″ | 2.35″ | 0.83 | $21.87 |
|
|
| S0122-FS20 | 3/4″ | 0.54″ | 1.63″ | 2.71″ | 2.05″ | 3.45″ | 2.75″ | 1.27 | $25.02 |
|
|
| S0122-FS22 | 7/8″ | 0.61″ | 1.75″ | 3.42″ | 2.40″ | 4.00″ | 2.86″ | 1.61 | $46.82 |
|
|
| S0122-FS25 | 1″ | 0.61″ | 2.10″ | 3.73″ | 2.40″ | 4.32″ | 2.97″ | 2.02 | $56.62 |
|
|
| S0122-FS32 | 1-1/4″ | 0.85″ | 2.08″ | 4.47″ | 3.16″ | 5.45″ | 4.10″ | 4.40 | $211.19 |
|
