Wire Rope Sheave – Bearings
Wire Rope Sheave – Bearings

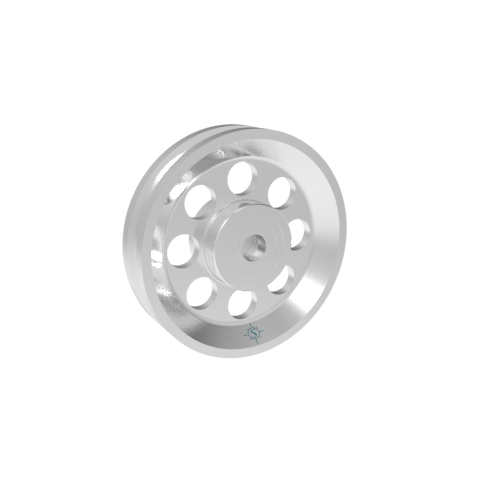

The Stainless Wire Rope Sheave fits wire rope sizes from 3/32″ to 3/8″. It includes two high-quality, shielded stainless steel bearings for smooth and efficient operation. Made from 316 stainless steel, this sheave resists corrosion and performs well in tough environments. It’s ideal for marine and industrial rigging applications that demand strength and reliability.
| ITEM | A (wire size) | B (bore) | C (rim width) | D | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0413-0307 | 3/32″+ 1/8″ | 3/8″ | 0.56″ | 1.88″ | 0.81″ | 2.25″ | 2.25″ | 1,000 | 0.36 | $76.37 |
|
|
| S0413-0513 | 3/16″ | 1/2″ | 0.72″ | 2.75″ | 0.94″ | 3.25″ | 3.25″ | 1,200 | 0.82 | $111.37 |
|
|
| S0413-0713 | 1/4″ | 1/2″ | 0.94″ | 3.50″ | 1.07″ | 4.25″ | 4.25″ | 1,200 | 1.50 | $158.36 |
|
|
| S0413-0716 | 1/4″ | 5/8″ | 0.94″ | 3.50″ | 1.07″ | 4.25″ | 4.25″ | 2,500 | 1.46 | $152.19 |
|
|
| S0413-0816 | 5/16″ | 3/4″ | 1.13″ | 4.38″ | 1.41″ | 5.25″ | 5.25″ | 3,800 | 2.63 | $232.05 |
|
|
| S0413-1020 | 3/8″ | 3/4″ | 1.38″ | 5.25″ | 1.70″ | 6.25″ | 6.25″ | 3,800 | 5.20 | $340.47 |
|
