Wire Rope Sheave – Bushing
Wire Rope Sheave – Bushing

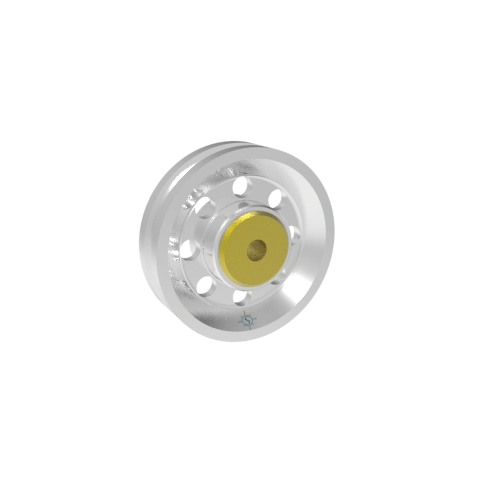

The Stainless Wire Rope Sheave fits wire rope sizes from 3/32″ to 3/8″. It includes a durable bronze bushing for smooth rotation and long-lasting performance. Made from 316 stainless steel, it resists corrosion and holds up in demanding environments. Use this sheave in marine and industrial rigging applications where strength and reliability are key.
| ITEM | A (wire size) | B (bore) | C (rim width) | D | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0412-0307 | 3/32″+ 1/8″ | 1/4″ | 0.56″ | 1.88″ | 0.82″ | 2.25″ | 2.25″ | 1,000 | 0.41 | $35.67 |
|
|
| S0412-0310 | 3/32″+ 1/8″ | 3/8″ | 0.56″ | 1.88″ | 0.82″ | 2.25″ | 2.25″ | 1,000 | 0.39 | $43.11 |
|
|
| S0412-0510 | 3/16″ | 3/8″ | 0.72″ | 2.75″ | 0.94″ | 3.25″ | 3.25″ | 1,500 | 0.91 | $70.44 |
|
|
| S0412-0513 | 3/16″ | 1/2″ | 0.72″ | 2.75″ | 0.94″ | 3.25″ | 3.25″ | 1,500 | 0.89 | $72.32 |
|
|
| S0412-0713 | 1/4″ | 1/2″ | 0.94″ | 3.50″ | 1.13″ | 4.25″ | 4.25″ | 3,000 | 1.67 | $102.83 |
|
|
| S0412-0716 | 1/4″ | 5/8″ | 0.94″ | 3.50″ | 1.13″ | 4.25″ | 4.25″ | 3,000 | 1.70 | $102.83 |
|
|
| S0412-0813 | 5/16″ | 1/2″ | 1.13″ | 4.38″ | 1.38″ | 5.25″ | 5.25″ | 5,000 | 3.00 | $167.87 |
|
|
| S0412-0816 | 5/16″ | 5/8″ | 1.13″ | 4.38″ | 1.38″ | 5.25″ | 5.25″ | 5,000 | 2.97 | $161.34 |
|
|
| S0412-1013 | 3/8″ | 1/2″ | 1.38″ | 5.25″ | 1.63″ | 6.25″ | 6.25″ | 8,000 | 5.79 | $302.48 |
|
|
| S0412-1020 | 3/8″ | 3/4″ | 1.38″ | 5.25″ | 1.63″ | 6.25″ | 6.25″ | 8,000 | 5.59 | $302.48 |
|
