PULLPRO® HiLOAD Wire Rope Sheave, Bushing
PULLPRO® HiLOAD Wire Rope Sheave, Bushing

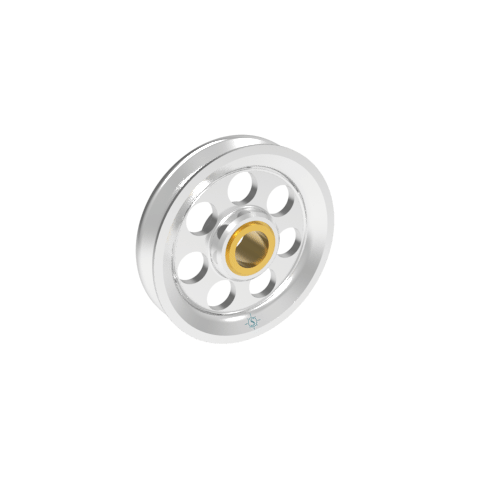

The PULLPRO® HiLOAD Stainless Sheave fits wire rope sizes from 1/8″ to 3/8″. It features a premium bronze bushing made from lead-free, oil-impregnated material for high-load, slow-turning use. The thick bushing wall reduces friction and supports side load wear. Made from 316 stainless steel, the sheave resists corrosion and holds up in harsh environments. HiLOAD refers to a larger diameter sheave designed for 180° rope turns with a high D/d ratio. PULLPRO® stainless steel sheaves are strong, safe, and built for long life. Choose from various hub styles and sizes to match your application. This sheave works well in marine, industrial, and structural setups.
| ITEM | A (wire size) | B (bore) | C (rim width) | D | X | Y | Z | SPACER (part #) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0418-0307 | 1/8″ | 0.25″ | 0.39″ | 1.64″ | 0.46″ | 2.00″ | 2.00″ | S0429-071012 | 500 | 0.14 | $21.08 |
|
|
| S0418-0310 | 1/8″ | 0.38″ | 0.39″ | 1.64″ | 0.44″ | 2.00″ | 2.00″ | N/A | 500 | 0.13 | $19.76 |
|
|
| S0418-0510 | 3/16″ | 0.38″ | 0.63″ | 2.42″ | 0.71″ | 3.00″ | 3.00″ | S0429-101618 | 1,500 | 0.54 | $34.44 |
|
|
| S0418-0513 | 3/16″ | 0.50″ | 0.63″ | 2.42″ | 0.71″ | 3.00″ | 3.00″ | S0429-131618 | 1,500 | 0.53 | $34.34 |
|
|
| S0418-0516 | 3/16″ | 0.63″ | 0.63″ | 2.42″ | 0.69″ | 3.00″ | 3.00″ | N/A | 1,500 | 0.51 | $31.66 |
|
|
| S0418-0713 | 1/4″ | 0.50″ | 0.77″ | 3.28″ | 0.86″ | 4.00″ | 4.00″ | S0429-132222 | 2,000 | 1.05 | $35.61 |
|
|
| S0418-0716 | 1/4″ | 0.63″ | 0.77″ | 3.28″ | 0.86″ | 4.00″ | 4.00″ | S0429-162222 | 2,000 | 1.02 | $35.03 |
|
|
| S0418-0720 | 1/4″ | 0.75″ | 0.77″ | 3.28″ | 0.86″ | 4.00″ | 4.00″ | S0429-202222 | 2,000 | 0.99 | $34.54 |
|
|
| S0418-0722 | 1/4″ | 0.88″ | 0.77″ | 3.28″ | 0.84″ | 4.00″ | 4.00″ | N/A | 2,000 | 0.95 | $30.68 |
|
|
| S0418-0813 | 5/16″ | 0.50″ | 0.77″ | 4.20″ | 0.86″ | 5.00″ | 5.00″ | S0429-132222 | 3,000 | 1.51 | $73.87 |
|
|
| S0418-0816 | 5/16″ | 0.63″ | 0.77″ | 4.20″ | 0.86″ | 5.00″ | 5.00″ | S0429-162222 | 3,000 | 1.48 | $73.23 |
|
|
| S0418-0820 | 5/16″ | 0.75″ | 0.77″ | 4.20″ | 0.86″ | 5.00″ | 5.00″ | S0429-202222 | 3,000 | 1.45 | $72.74 |
|
|
| S0418-0822 | 5/16″ | 0.88″ | 0.77″ | 4.20″ | 0.84″ | 5.00″ | 5.00″ | N/A | 3,000 | 1.41 | $68.89 |
|
|
| S0418-1016 | 3/8″ | 0.63″ | 0.92″ | 5.00″ | 1.02″ | 6.00″ | 6.00″ | S0429-162825 | 4,000 | 2.52 | $109.33 |
|
|
| S0418-1020 | 3/8″ | 0.75″ | 0.92″ | 5.00″ | 1.02″ | 6.00″ | 6.00″ | S0429-202825 | 4,000 | 2.48 | $108.21 |
|
|
| S0418-1022 | 3/8″ | 0.88″ | 0.92″ | 5.00″ | 1.02″ | 6.00″ | 6.00″ | S0429-222825 | 4,000 | 2.43 | $107.62 |
|
|
| S0418-1028 | 3/8″ | 1.13″ | 0.92″ | 5.00″ | 1.00″ | 6.00″ | 6.00″ | N/A | 4,000 | 2.32 | $101.23 |
|
