PULLPRO® LoLOAD Wire Rope Sheave, Bushing
PULLPRO® LoLOAD Wire Rope Sheave, Bushing

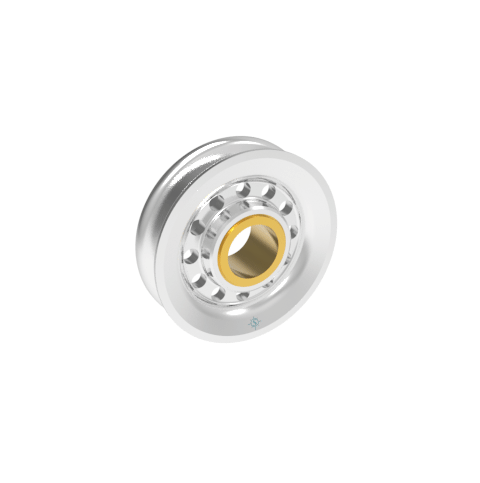

The PULLPRO® LoLOAD Stainless Wire Rope Sheave fits rope sizes from 3/16″ to 3/8″. It includes a thick-walled, lead-free bronze bushing that reduces friction and supports side load wear. Built for high-load, slow-turning use, this bushing performs reliably in demanding conditions. The sheave uses 316 stainless steel to resist corrosion and extend service life in marine and industrial environments. LoLOAD sheaves feature a smaller diameter and are ideal for economical setups with light deflection turns under 90 degrees and a lower D/d ratio. PULLPRO® stainless steel sheaves offer strength, safety, and long-term performance. A range of sizes and hub styles lets you match the sheave to your specific application. The design balances groove diameter, throat angle, and weight for smooth, dependable operation.
| ITEM | A(wire size) | B(bore) | C(rim width) | D | X | Y | Z | SPACER(part #) | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0416-0507 | 3/16" | 0.25" | 0.51" | 1.50" | 0.59" | 2.00" | 2.00" | S0429-071015 | 1,000 | 0.21 | $27.54 |
|
|
| S0416-0510 | 1/4" | 0.38" | 0.63" | 1.90" | 0.56" | 2.50" | 2.50" | N/A | 1,500 | 0.20 | $28.69 |
|
|
| S0416-0710 | 5/16" | 0.50" | 0.77" | 2.33" | 0.71" | 3.13" | 3.13" | S0429-101618 | 2,000 | 0.50 | $43.38 |
|
|
| S0416-0713 | 3/8" | 0.63" | 0.63" | 3.04" | 0.69" | 4.00" | 4.00" | S0429-131618 | 3,000 | 0.48 | $44.63 |
|
|
| S0416-0716 | 1/4" | 0.63" | 0.63" | 1.90" | 0.69" | 2.50" | 2.50" | N/A | 1,500 | 0.46 | $46.73 |
|
|
| S0416-0813 | 5/16" | 0.50" | 0.77" | 2.33" | 0.86" | 3.13" | 3.13" | S0429-162222 | 2,000 | 0.83 | $55.80 |
|
|
| S0416-0816 | 5/16" | 0.63" | 0.77" | 2.33" | 0.86" | 3.13" | 3.13" | S0429-202222 | 2,000 | 0.80 | $58.35 |
|
|
| S0416-0820 | 5/16" | 0.75" | 0.77" | 2.33" | 0.86" | 3.13" | 3.13" | S0429-202222 | 2,000 | 0.77 | $60.31 |
|
|
| S0416-0822 | 5/16" | 0.88" | 0.77" | 2.33" | 0.84" | 3.13" | 3.13" | N/A | 2,000 | 0.73 | $61.44 |
|
|
| S0416-1013 | 3/8" | 0.50" | 0.77" | 3.04" | 0.86" | 4.00" | 4.00" | S0429-132222 | 3,000 | 1.25 | $72.23 |
|
|
| S0416-1016 | 3/8" | 0.63" | 0.77" | 3.04" | 0.86" | 4.00" | 4.00" | S0429-162222 | 3,000 | 1.22 | $74.19 |
|
|
| S0416-1020 | 3/8" | 0.75" | 0.77" | 3.04" | 0.86" | 4.00" | 4.00" | S0429-202222 | 3,000 | 1.19 | $76.76 |
|
|
| S0416-1022 | 3/8" | 0.88" | 0.77" | 3.04" | 0.84" | 4.00" | 4.00" | N/A | 3,000 | 1.15 | $80.44 |
|
