US Round Pin Anchor Shackle
US Round Pin Anchor Shackle

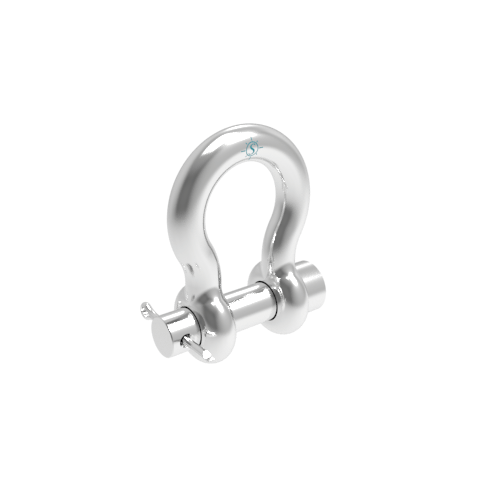

The US Stainless Round Pin Anchor Shackle is proudly made in the USA from 316-NM stainless steel. It features an oversize round pin for strong, secure connections. Built to withstand harsh saltwater conditions, this shackle is a reliable choice for marine applications.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0116-RP07-US | 1/4" | 0.31" | 0.47" | 1.11" | 0.75" | 1.50" | 1.79" | 0.60" | 1,000 | 0.1 | $21.56 |
|
|
| S0116-RP08-US | 5/16" | 0.38'' | 0.53" | 1.20" | 0.80" | 1.78" | 2.03" | 0.74" | 1,300 | 0.17 | $22.86 |
|
|
| S0116-RP10-US | 3/8" | 0.44" | 0.66" | 1.41" | 1.00" | 2.01" | 2.44" | 0.89" | 1,500 | 0.29 | $26.49 |
|
|
| S0116-RP12-US | 7/16" | 0.50" | 0.72" | 1.77" | 1.10" | 2.42" | 2.91" | 1.01" | 2,000 | 0.44 | $47.70 |
|
|
| S0116-RP13-US | 1/2" | 0.63" | 0.82" | 1.83" | 1.20" | 2.64" | 3.20" | 1.15" | 3,000 | 0.68 | $57.52 |
|
|
| S0116-RP16-US | 5/8" | 0.75" | 1.02" | 2.41" | 1.60" | 3.36" | 4.17" | 1.47" | 4,000 | 1.35 | $57.53 |
|
|
| S0116-RP20-US | 3/4" | 0.88" | 1.25" | 2.84" | 1.90" | 3.72" | 4.87" | 1.74" | 6,000 | 2.15 | $92.40 |
|
|
| S0116-RP22-US | 7/8" | 1.00" | 1.48" | 3.30" | 2.20" | 4.32" | 5.62" | 1.92" | 8,000 | 3.26 | $134.12 |
|
|
| S0116-RP25-US | 1" | 1.13" | 1.70" | 3.80" | 2.60" | 5.00" | 6.45" | 2.22" | 10,000 | 4.83 | $128.80 |
|
|
| S0116-RP32-US | 1-1/4" | 1.38" | 2.03" | 4.69" | 3.20" | 7.22" | 8.15" | 2.77" | 14,000 | 9.88 | $477.06 |
|
